SKU: 150CB012
Quote
• Medium beam
• Waterproof IP56
• Maintenance friendly
• High quality materials
Description :

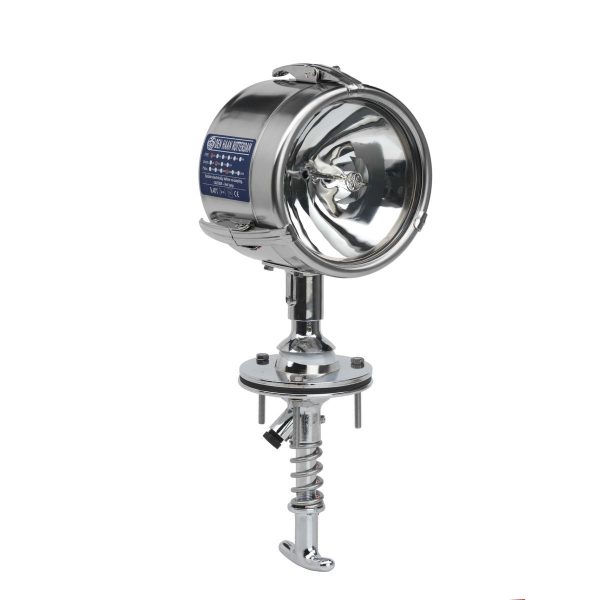

The DHR150 Searchlight is the most compact searchlight manufactured by DHR. Made of brushed stainless steel with a 12V or 24V sealed beam lamp PAR46 and a range between 450 and 550 meters.
The ball joint cabin control is used for operation from the wheelhouse. Because of its relatively small size it is very suitable for vessel low in height.
Materials
• Brushed stainless steel 316 housing
• All other materials are corrosion resistant and non-magnetic
Weight
• Housing 2.7Kg
• Extension tube 250mm 0.25 Kg
• Extension tube 330mm 0.35 Kg
• Extension tube 500mm 0.50 Kg
Extension
• Stainless steel extension tubes in 250, 330 and 500mm available
Optics
• Sealed beam reflector
Protection class
• IP56

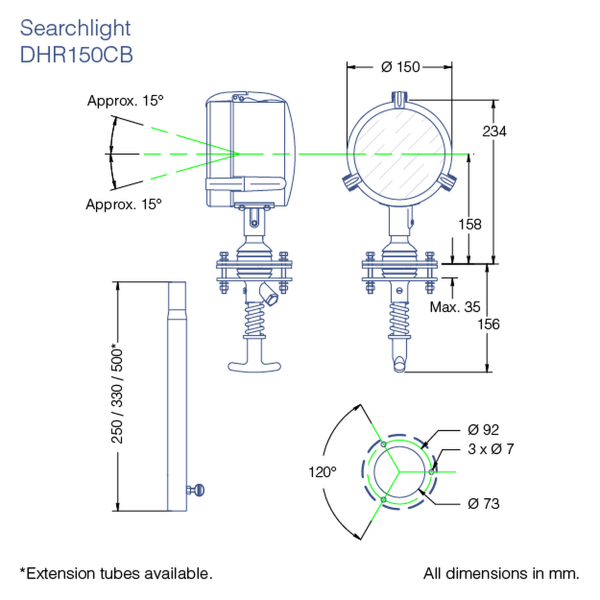

Specifications
Model
Ball joint cabin control
Voltage Lamp base Power Range at 1 Lux Divergency at 50% Light Intensity Article code
12VDC Screw terminals 100W 450m 11°x6° 200.000 cd 150CB012
Ball joint cabin control
Voltage Lamp base Power Range at 1 Lux Divergency at 50% Light Intensity Article code
24VDC Screw terminals 250W 550m 12°x11° 300.000 cd 150CB024
Available extension tubes
Length Article code
• Extension tube 250mm 180CC025
• Extension tube 330mm 180CC033
• Extension tube 500mm 180CC050
